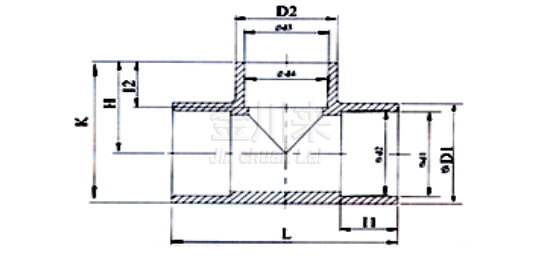

ANSI SCH80

Size	D1	D2	d1	d2	I1	d3	d4	I2	L	H	K
3/4″3/4″1/2″	35	30.5	26.87	26.57	27.4	21.54	21.23	24.22	85	38.5	56
1″1″1/2″	44	30.5	33.66	33.27	30.58	21.54	21.23	24.22	96	41	63
1″1″3/4″	44	35	33.66	33.27	30.58	26.87	26.57	27.4	96	44.5	66.5
1″1″2″	44	73	33.66	33.27	30.58	60.63	60.17	41.1	96	65	87
1-1/4″1-1/4″1/2″	54	30.5	42.42	42.04	34.75	21.54	21.23	24.22	115.5	44.5	71.5
1-1/4″1-1/4″3/4″	54	35	42.42	42.04	34.75	26.87	26.57	27.4	115.5	48	75
1-1/4″1-1/4″1″	54	44	42.42	42.04	34.75	33.66	33.27	30.58	115.5	52	79
1-1/2″1-1/2″1/2″	60	30.5	48.56	48.11	37.93	21.54	21.23	24.22	128	48.5	78.5
1-1/2″1-1/2″3/4″	60	35	48.56	48.11	37.93	26.87	26.57	27.4	128	52	82
1-1/2″1-1/2″1″	60	44	48.56	48.11	37.93	33.66	33.27	30.58	128	55.5	85.5
1-1/2″1-1/2″1-1/4″	60	54	48.56	48.11	37.93	42.42	42.04	34.75	128	60	90
2″2″1/2″	75	30.5	60.63	60.17	41.1	21.54	21.23	24.22	146	54	91.5
2″2″3/4″	75	35	60.63	60.17	41.1	26.87	26.57	27.4	146	57.5	95
2″2″1″	75	44	60.63	60.17	41.1	33.66	33.27	30.58	146	60.5	98
2″2″1-1/4″	75	54	60.63	60.17	41.1	42.42	42.04	34.75	146	65	102.5
2″*2″1-1/2″	75	60	60.63	60.17	41.1	48.56	48.11	37.93	146	69	106.5
2-1/2″2-1/2″1″	89	54	73.38	72.85	47.45	33.66	33.27	30.58	171	67.5	112
2-1/2″2-1/2″1-1/4″	89	56	73.38	72.85	47.45	42.42	42.04	34.75	171	72	117.5
2-1/2″2-1/2″1-1/2″	89	60	73.38	72.85	47.45	48.56	48.11	37.93	171	75	119.5
2-1/2″2-1/2″2″	89	73	73.38	72.85	47.45	60.63	60.17	41.1	171	79	123.5
3″3″1″	105	44	89.31	88.7	50.63	33.66	33.27	30.58	196	83	135.5
3″3″1-1/2″	105	60	89.31	88.7	50.63	48.56	48.11	37.93	196	87	139.5
3″3″2″	105	73	89.31	88.7	50.63	60.63	60.17	41.1	196	95	147.5
3″*3″2-1/2″	105	89	89.31	88.7	50.63	73.83	72.85	47.45	196	95	147.5
4″4″1″	132	44	114.76	114.07	60.15	33.66	33.27	30.58	238	90	156
4″*4″1-1/2″	132	44	114.76	114.07	60.15	48.56	48.11	37.93	238	97	163
4″4″2″	132	73	114.76	114.07	60.15	60.63	60.17	41.11	238	97	163
4″4″2-1/2″	132	89	114.76	114.07	60.15	73.38	72.85	47.45	238	104	170.5
4″4″3″	132	105	114.76	114.07	60.15	89.31	88.71	50.63	238	110	176
5″5″2″	163	74	141.81	141.04	70	60.63	60.17	41.1	298	114.5	196
6″6″2″	191	75	168.83	168	79.2	60.63	60.17	41.1	338	130	225.5
6″6″4″	191	132	168.83	168	79.2	114.76	114.07	60.15	338	145	240.5
8″8″2″	248	74	219.84	218.7	104.6	60.63	60.17	41.11	439	151	275
8″8″3″	248	105	219.84	218.7	104.6	89.3	88.7	50.63	439	160	284
8″8″4″	248	105	219.84	218.7	104.6	114.76	114.07	60.15	439	170	294
8″8″6″	248	191	219.84	218.7	104.6	168.83	168	79.2	439	194	318
10″10″2″	307	74	273.81	272.67	130	60.63	60.17	41.1	560	185	338.5
10″10″3″	307	107	273.81	272.67	130	89.31	88.31	50.6	560	194	347.5
10″10″4″	307	134	273.81	272.67	130	114.76	114.07	60.2	560	205	358.5
10″10″6″	307	193	273.81	272.67	130	168.83	168	79.2	560	225	378.5
10″10″8″	307	248	273.81	272.67	130	219.84	218.69	104.4	560	250	403.5
12″12″2″	364	74	324.61	323.47	155	60.63	60.17	41.1	660	215	397
12″12″3″	364	107	324.61	323.47	155	89.31	88.31	50.6	660	225	407
12″12″4″	364	136	324.61	323.47	155	114.76	144.07	60.2	660	235	417
12″12″6″	364	195	324.61	323.47	155	168.83	168	79.2	660	255	437
12″12″8″	364	248	324.61	323.47	155	219.84	218.69	104.4	660	280	462
12″12″10″	364	308	324.61	323.47	155	273.81	272.67	130	660	305	487
14″14″4″	396.5	136	356.49	355.22	180	114.76	114.07	60.2	856	288	480
14″14″6″	396.5	195	356.49	355.22	180	168.83	168	79.2	856	308	500
14″14″8″	396.5	248	356.49	355.22	180	219.84	218.69	104.4	856	337	529
14″14″10″	396.5	308	356.49	355.22	180	273.81	272.67	130	856	362	554
14″14″12″	396.5	364	356.49	355.22	180	324.6	323.5	155	856	386	578

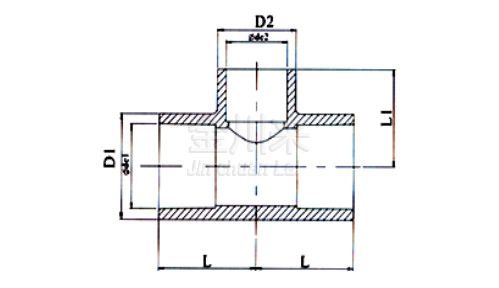

GB PN10/DIN PN16

Size Nom	∮d1	∮d2	∮d3	∮d4	∮d	∮do	∮D	∮D1	I	I1	L	H
25X20	25.3	24.9	20.3	19.9	22	17	32.2	26	19	16	65	29.5
32X20	32.3	31.9	20.3	19.9	28	17	41	26	22	16	80	34
32X25	32.3	31.9	25.3	24.9	28	22	41	32.2	22	19	80	37
40X20	40.3	39.9	20.3	19.9	35	17	50.8	26	26	16	96	38
40X25	40.3	39.9	25.3	24.9	35	22	50.8	32.2	26	19	96	41
40X32	40.3	39.9	32.3	31.9	35	28	50.8	41	26	22	96	44
50X20	50.3	49.9	20.3	19.9	44	17	63.4	26	31	16	116	43
50X25	50.3	49.9	25.3	24.9	44	22	63.4	32.2	31	19	116	46
50X32	50.3	49.9	32.3	31.9	44	28	63.4	41	31	22	116	49
50X40	50.3	49.9	40.3	39.9	44	35	63.4	50.8	31	26	116	53
63X20	63.3	62.9	20.3	19.9	56	17	79.6	26	38	16	143	49.5
63X25	63.3	62.9	25.3	24.9	56	22	79.6	32.2	38	19	143	52.5
63X32	63.3	62.9	32.3	31.9	56	28	79.6	41	38	22	143	55.5
63X40	63.3	62.9	40.3	39.9	56	35	79.6	50.8	38	26	143	59.5
63X50	63.3	62.9	50.3	49.9	56	44	79.6	63.4	38	31	143	64.5
75X32	75.35	74.9	32.3	31.9	73.5	28	95	41	44	22	168	62
75X40	75.35	74.9	40.3	39.9	73.5	35	95	50.8	44	26	168	66
75X50	75.35	74.9	50.3	49.9	73.5	44	95	63.4	44	31	168	71
75X63	75.35	74.9	63.3	62.9	73.5	56	95	79.6	44	38	168	78
90X32	90.5	89.9	32.3	31.9	87	28	114	41	51	22	198	70
90X40	90.5	89.9	40.3	39.9	87	35	114	50.8	51	26	198	74
90X50	90.5	89.9	50.3	49.9	87	44	114	63.4	51	31	198	79
90X63	90.5	89.9	63.3	62.9	87	56	114	79.6	51	38	198	86
90X75	90.5	89.9	75.35	74.9	87	73.5	114	95	51	44	198	92
110X32	110.6	109.9	32.3	31.9	108	28	135	41	61	22	238	80
110X50	110.6	109.9	50.3	49.9	108	44	135	63.4	61	31	238	89
110X63	110.6	109.9	63.3	62.9	108	56	135	79.6	61	38	238	96
110X75	110.6	109.9	75.35	74.9	108	73.5	135	95	61	44	238	102
110X90	110.6	109.9	90.5	89.9	108	87	135	114	61	51	238	109
140X63	140.85	140.05	63.3	62.9	136	56	163	79.6	76	38	298	111
160X63	160.85	160.05	63.3	62.9	158.4	56	186	79.6	86	38	338	121
160X75	160.85	160.05	75.35	74.9	158.4	73.5	186	95	86	44	338	127
160X90	160.85	160.05	90.5	89.9	158.4	87	186	114	86	51	338	134
160X110	160.85	160.05	110.6	109.9	158.4	108	186	135	86	61	338	144
160X140	160.85	160.05	140.85	140.05	158.4	136	186	163	86	76	338	160
225X90	226.25	225.05	90.5	89.9	223	87	261	114	119	51	469	166.5
225X110	226.25	225.05	110.6	109.9	223	108	261	135	119	61	469	176.5
225X140	226.25	225.05	140.85	140.05	223	136	261	163	119	76	469	192.5
225X160	226.25	225.05	160.85	160.05	223	158.4	261	186	119	86	469	201.5
250X110	251.45	250.05	110.6	109.9	239	108	290	135	131	61	518	195.5
250X140	251.45	250.05	140.85	140.05	239	136	290	163	131	76	518	210.5
250X160	251.45	250.05	160.85	160.05	239	158.4	290	186	131	86	518	220.5
250X225	251.45	250.05	226.25	225.05	239	223	290	261	131	119	518	255.5
315X110	316.85	315.05	110.6	109.9	304	108	364	135	163	61	652	228
315X140	316.85	315.05	140.85	140.05	304	136	364	163	163	76	652	243
315X160	316.85	315.05	160.85	160.05	304	158.4	364	186	163	86	652	253
315X225	316.85	315.05	226.25	225.05	304	223	364	261	163	119	652	286
315X250	316.85	315.05	251.45	250.05	304	239	364	290	163	131	652	298
